High-Quality, Budget-Friendly LED Beacon

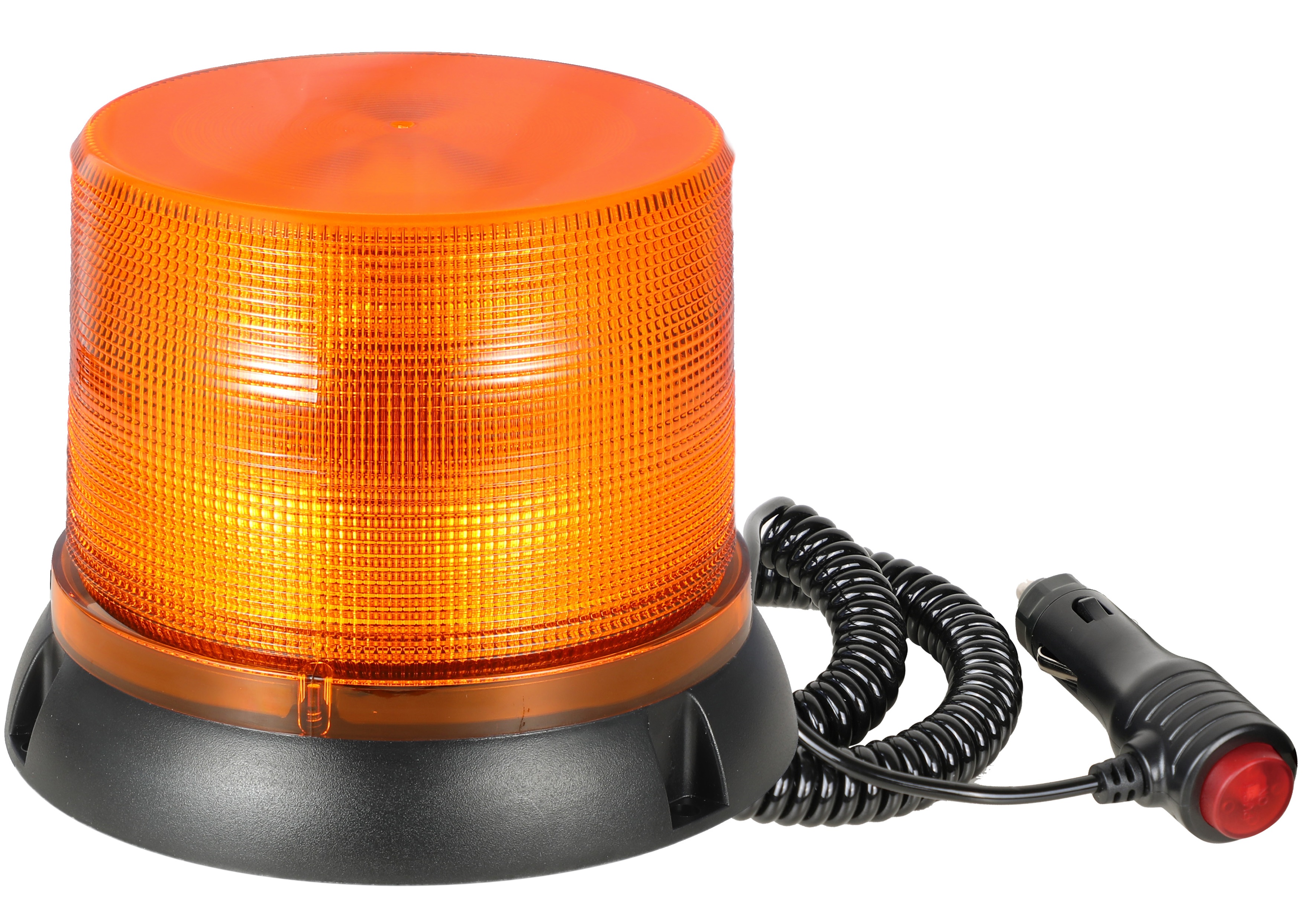

Model:YC-8702
• This led strobe beacon offers seven selectable flash patterns
• Manufactured with 24 x 0.5 W LEDs
• The led strobe beacon is IP67 waterproof for harsh environments
• -30°C to +60°C extreme temperature reliability
• Polycarbonate UV Lens and Polycarbonate Base
• CE , ECE R10, UKCA Approve
• This led strobe beacon meets SAE J845 Class 2, CISPR 25 Class 3, and CAP168
Add to inquiry
print Contact
FEATURES

LED Warning Light

 Applications

Auto Parts, Auto Accessory Light, Auto accessory, Auto Tuning


TAG : Warning Light, Alarm Light, Strobe Light, LED Light, LED Warning Light, Safety Light

• Seven selectable flash patterns
• Manufactured with 24 x 0.5 W LEDs
• IP67 Waterproof
• -30°C to +60°C extreme temperature reliability
• Polycarbonate UV Lens and Polycarbonate Base
• CE , ECE R10, UKCA Approve
• Meets SAE J845 Class 2, CISPR 25 Class 3, CAP168

SPECIFICATIONS
Specification Details
Light Source 24 LEDs × 0.5W
Patterns 7
Voltage 12–24V DC
Lens Material UV-Resistant Polycarbonate Lens and Base
Power Source Wired or Cigarette Plug
Operating Temperature –30°C to +60°C
Profile Low Profile
Waterproof Rating IP67
Mounting Magnetic or Screw Mount
Warranty 3 Years
Certifications CE, ECE R10, UKCA, SAE J845 Class 2, CISPR 25 Class 3, CAP168




Flash Patterns

Pattern Name Standard / Note
Single Flash
Double Flash SAE
Quad Flash
Octa Flash
Single Flash – Slow CAP 168
Single Flash (Breath-like)
Rotating Flash

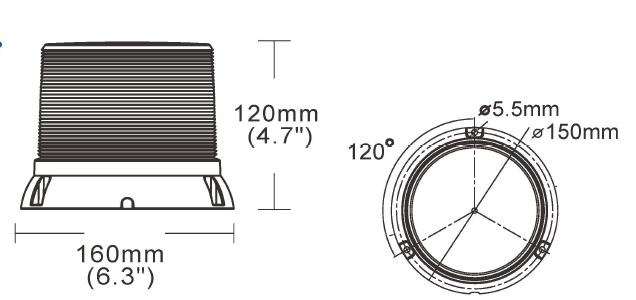

DIMENSIONS
